Product Description
PT Core™ Fuel-cell Sensor Inside! Compare to other fuel-cell alcohol testers to see the remarkable price point!
The AlcoHAWK® PT500P is a breakthrough unit in the handheld AlcoHAWK Series line of breath alcohol testers. It incorporates our PT Core™ fuel-cell sensor to virtually eliminate false positives and offer enhanced linear accuracy over traditional semi-conductor sensors. The simple menu-driven operation allows you to quickly and accurately screen for the presence of alcohol up to 0.400% BAC. The AlcoHAWK PT500P also features a large, easy-to-read back-lit LCD display.
The AlcoHAWK PT500P is the ideal unit for law enforcement roadside screening, corrections, probation officers, substance abuse clinics, boating, military, and many other areas of professional testing in which fuel-cell accuracy and reliability is required.
The AlcoHAWK PT500P is a DOT / NHTSA Conforming Breath Alcohol Screener.
- PT Core Technology
- Advanced PressureCheck Technology
- Wireless Printing
- CE Logo
- CE Approved
PT Core™ Fuel-cell Sensor Technology:
The PT Core™ sensor is an exciting new technology available in the AlcoHAWK PT models. This new technology incorporates an electro-chemical fuel-cell detection system. PT Core™ Technology offers many advantages over semi-conductor based technologies such as:
- Better linear accuracy away from the point of calibration
- Less chance of getting false positives from interfering substances such as ketones which can be seen in conditions such as diabetes or people on fad diets
- Improved sensor life - The PT Core™ sensor is designed to be robust and last for thousands of tests in fields such as Law Enforcement
- AlcoHAWK PT500 Professional Kit
The AlcoHAWK PT500P Professional Kit includes:
- Professional hard case with foam protection

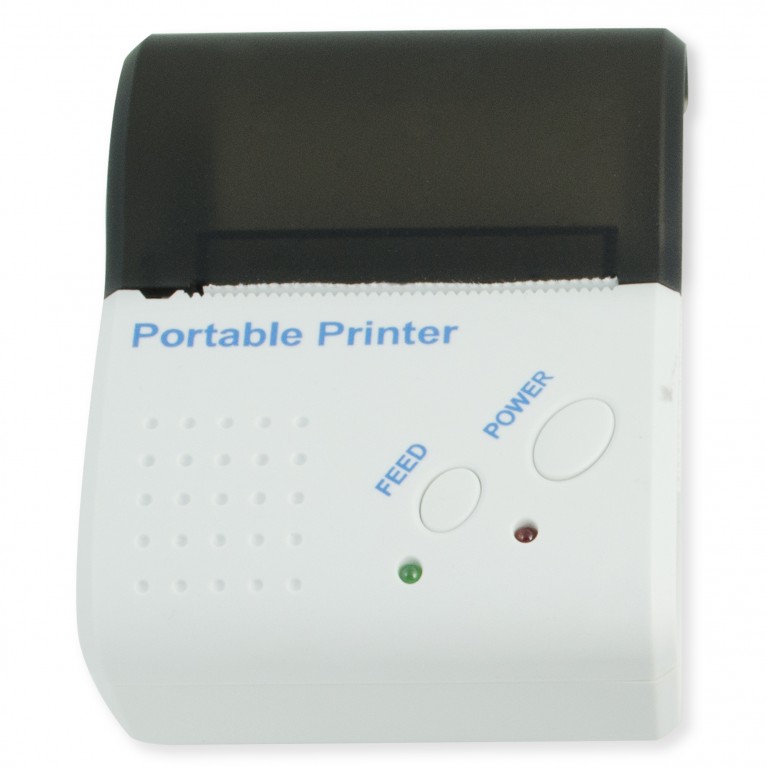

- AlcoHAWK PT Series Wireless Printer

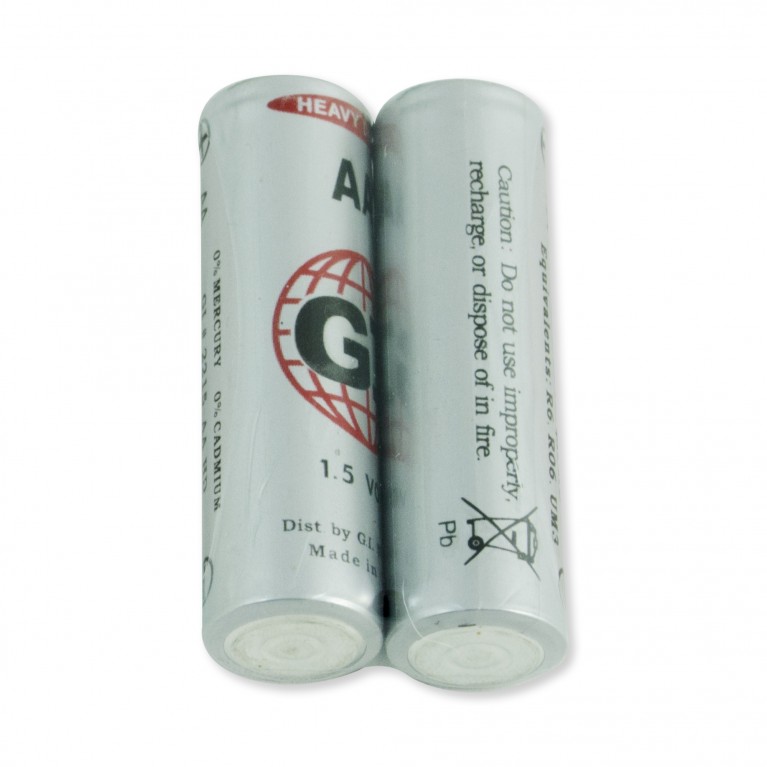

- Two (2) AA batteries

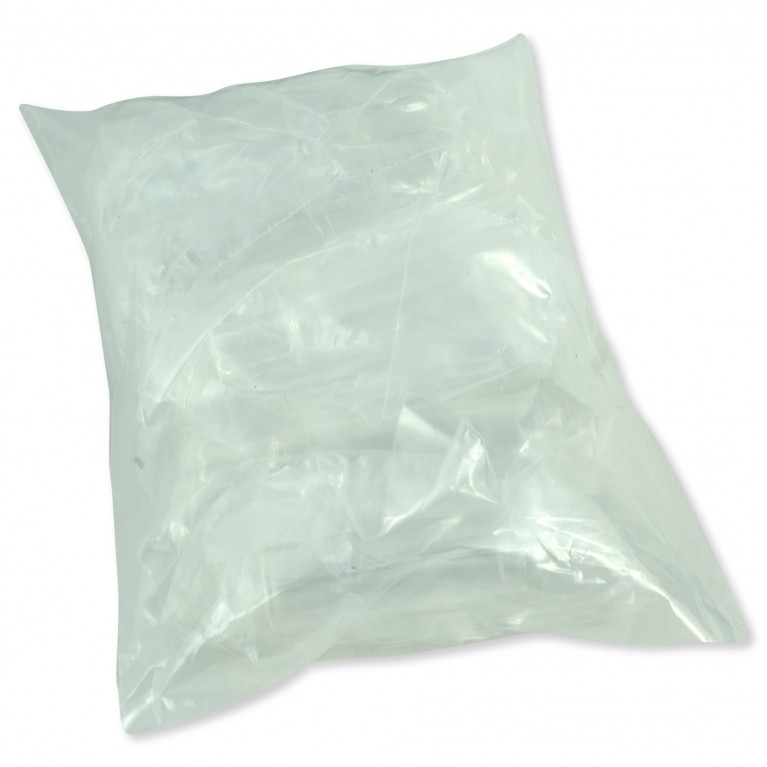

- 10 individually wrapped mouthpieces
- Owner's Manual
- Quick Start Guide
- 1 year warranty
The AlcoHAWK PT500P is the ideal unit for law enforcement roadside screening, corrections, probation officers, substance abuse clinics, boating, military, and many other areas of professional testing in which fuel-cell accuracy and reliability is required.
Adjustable Blowing Time:
The AlcoHAWK PT500P is the first AlcoHAWK that allows you to control the blowing time. The blowing time may be adjusted for testing subjects with poor lung capacity, such as a smoker, or for testing subjects with a large lung capacity, such as a high-endurance runner. This makes the AlcoHAWK PT500P ideal for accurate and reliable testing of a variety of individuals. The AlcoHAWK PT500P's blowing time is adjustable from 3 to 8 seconds.
Temperature Display:
The AlcoHAWK PT500P constantly displays the ambient temperature during use to help you operate the unit during its optimal temperature range of 50° - 104° F (10° - 40° C).
Warning Level Indicator:
The AlcoHAWK PT500P features an audible and visual warning when a subject's BAC surpasses the adjustable BAC alarm point.
Pressure Scan Sensor:
Ensures that the user blows with enough force to start a test and also ensures that they continue to blow through the unit throughout the entire test.
Wireless Printing Capability:
Print test results to the AlcoHAWK® PT Series Wireless Printer with the press of a button. Each roll of 2 ¼ x 50’ of thermal printer paper will be able to print about 150 test results.
Automatic Pump:
Simple one button sampling with no manual activation of pump required.
Test Counter:
Keep track of the number of tests run on the unit.
Menu Option Features in the AlcoHAWK PT500P:
- Alarm Point: The unit will read “High” if the BAC reading exceeds the alarm point setting. The default setting is 0.020% BAC. You can change the alarm point from between 0.020%-0.080% BAC.
- Temperature Scale: This option allows you to switch between Celsius (C) and Fahrenheit (F) for the temperature display. The default setting is Fahrenheit (F).
- Blowing Time: You can adjust the blowing time from 3 to 8 seconds. The default setting is 5 seconds. Five seconds is the standard time to obtain a proper sample.
- Convert Units: Use this option to change the unit of alcohol concentration shown for tests. You can choose between %BAC (U.S.A), g/L, or ‰BAC. The default setting is %BAC (U.S.A), the U.S.A standard.
- Test Counter: Use this option to keep track of the number of tests run since the counter was last reset.
AlcoHAWK PT500P Specifications:
- Dimensions: 5" x 2.63" x 1.25" (130 mm x 70 mm x 35 mm)
- Weight: 5.29 oz (150 g) with batteries
- Housing: Shock Resistant, Molded Plastic
- Power: Two (2) AA Alkaline Batteries (not included)
- Battery Life: 200 tests 1
- Sensor: Electrochemical Fuel-cell
- Warmup Time: 10-20 Seconds 1
- Blowing Time: 5 Seconds 2
- Response Time: 5-10 Seconds 1
- B.A.C. Range: .000 - .400% BAC (Blood Alcohol Concentration)
- Sensor Accuracy: +/- 0.01% at 0.05% BAC 3
- Calibration: Required Periodically
- Operation: Three (3) Button
- Warranty: 1 Year
Estimates, results may vary. Default setting, adjustable from 3-8 seconds. Read owner’s manual before use to understand proper use, accuracy limitations, and calibration requirements. This device is not to be used to determine if the subject is legal or able to operate any equipment or vehicle.
